USB-C and Thunderbolt can look identical, but whether they work together depends on more than the plug. A USB-C connection might support a basic peripheral, a fast external SSD, a display, charging or a combination of those functions. The practical question is which capabilities the computer, accessory and cable share.
This guide separates connector shape, data protocol, video and power so you can choose a cable or dock confidently. Our USB versions comparison provides additional background on the version names.
Connector Shape and Supported Functions

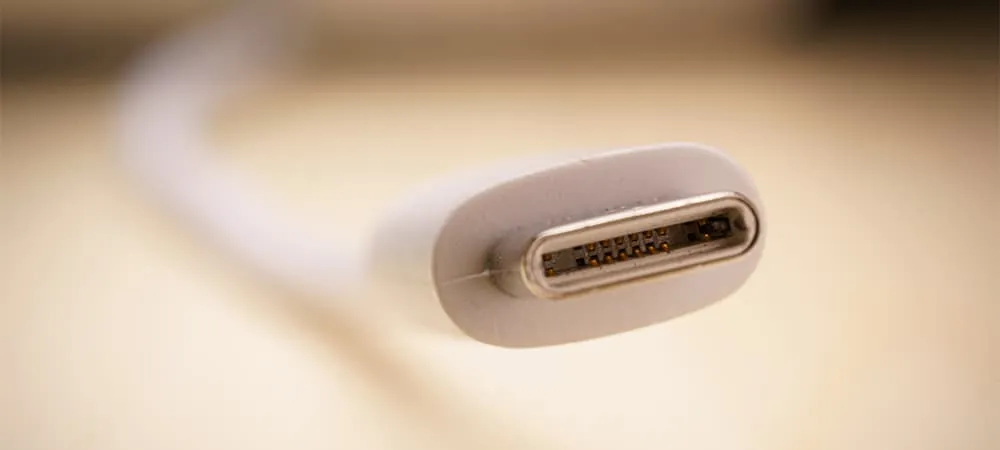

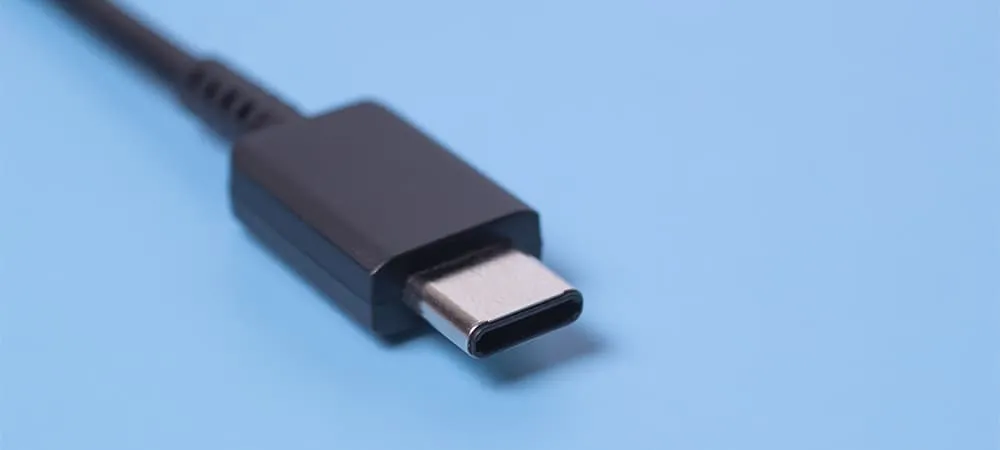

USB-C is the connector format; it is not a speed rating. Thunderbolt 3, 4 and 5 use that reversible connector, but an ordinary USB-C port does not necessarily implement Thunderbolt. Read the computer's specifications for the particular port rather than relying on its appearance. Different ports on one machine may have different capabilities.
Power Delivery and display output are also separate capabilities. A port described as USB 3.2 may be a data port without video output or laptop charging. A DisplayPort-capable USB-C connection can carry video through an alternate mode, whereas USB4 and Thunderbolt can transport multiple protocols through their high-speed link. A charge-capable socket should not be assumed to support all those data or display functions.
Data Rates: Read the Actual Capability
These are interface signaling or link rates, not guaranteed file-copy speeds. Protocol overhead, the storage device, shared dock traffic and the host implementation affect the result.
| Label | Published link capability | What to check |
|---|---|---|
| USB 3.2 Gen 1 | 5 Gbps | Video and charging are separate specifications |
| USB 3.2 Gen 2 | 10 Gbps | The complete host/cable/device path must support this rate |
| USB 3.2 Gen 2×2 | 20 Gbps | Requires the corresponding two-lane USB mode |
| USB4 | 20 or 40 Gbps in earlier implementations; up to 80 Gbps with the newer capability | Read the product's explicit speed and accessory compatibility |
| Thunderbolt 3 | Up to 40 Gbps | Host data/video implementation and accessory requirements |
| Thunderbolt 4 | 40 Gbps; higher minimum data/video requirements than Thunderbolt 3 | Actual display limits, supported device and cable |
| Thunderbolt 5 | 80 Gbps in each direction; optional 120/40 Gbps display-oriented Bandwidth Boost | Compatible host, device and rated cable |
USB4 Version 2.0 introduced the 80 Gbps capability and an optional asymmetric arrangement with up to 120 Gbps in one direction and 40 Gbps in the other. Similarly, Thunderbolt 5's Bandwidth Boost reallocates bandwidth for demanding display traffic. It does not give an SSD a universally available 120 Gbps file-transfer connection. A product that merely says USB4 needs its actual rate checked; a new specification does not upgrade an older controller.
PCIe Accessories and Memory Protection
Thunderbolt can transport PCIe, allowing supported accessories such as external PCIe storage, capture devices and graphics enclosures. This still uses controllers and a shared transport; it is not equivalent to attaching an accessory directly to the processor's physical PCIe traces, and no universal sub-microsecond latency is promised. The device and operating system must support the intended use.
An eGPU is a good example of why the port label alone is insufficient. Apple's eGPU support guidance requires an Intel-based Mac with Thunderbolt 3 and a supported software/hardware configuration. That should not be generalized to Apple silicon Macs just because they also have Thunderbolt sockets. Other platforms likewise need a suitable enclosure, drivers and host support.
PCIe-capable external devices can access memory through DMA. Thunderbolt 4 certification introduced stronger DMA-protection requirements. On Windows, Microsoft's Kernel DMA Protection documentation explains the role of the IOMMU and compatible drivers; virtualization-based security is not required. Firmware and operating-system behavior matter too. Use the platform's normal authorization and protection controls rather than disabling them to solve a connection problem.
Charging: Wattage Is a Separate Specification
USB Power Delivery lets compatible devices negotiate power. Standard Power Range reaches up to 100 W, while Extended Power Range introduced by USB PD 3.1 allows up to 240 W with an appropriate charger, cable and receiving device. These are supported ceilings, not the amount every USB-C port supplies. A computer may charge through only some of its ports, and a dock may offer less host power than the charger's headline rating.
Check the laptop's required charging power, the dock's specified host output and the cable's power rating together. A high-power charger cannot force an unsupported laptop to accept its full rating. Conversely, a dock that charges a machine while idle may be inadequate for sustained heavy workloads if its available output is below the machine's needs. Check the manufacturer's behavior and charging requirements for your exact computer.
USB-IF's certified cable program distinguishes power from data performance: current cable markings use 60 W or 240 W power capabilities, with separate data-rate markings where applicable. A 240 W charging cable may still provide only USB 2.0 data. It is therefore a poor shortcut to choose a storage cable by wattage alone.
Dock Compatibility and Multiple Displays
A Thunderbolt device connected to an ordinary USB-C port does not automatically become a basic hub. Some docks implement a USB fallback mode and others require Thunderbolt. Confirm the manufacturer's compatibility table. CalDigit's TS4 is an example that documents USB-C and USB4 host operation with functions limited by the host; that is a product-specific capability, not proof that all Thunderbolt docks behave the same way.
For monitors, check resolution, refresh rate, color depth and the number of independent displays supported by the computer, dock and adapters. Thunderbolt 4's certification requirements include stronger display support than Thunderbolt 3, but the exact computer's graphics and operating-system limits still need checking. Having two display sockets on a dock does not itself establish two extended desktops.
DisplayPort MST is another source of confusion. CalDigit's USB-C Dock guidance documents mirrored rather than independent outputs on macOS when using its MST arrangement. A suitable Thunderbolt dock can provide separate display paths, but it cannot remove a Mac model's own native display limit. Consult the current model-specific compatibility chart, especially for different Apple silicon generations. Check downstream-port functions as well: a dock can have USB-C sockets intended only for data, alongside others that support displays.
Choose the Cable for the Whole Connection
Read both the supported data rate and the power rating, then check the intended video use. Electronic cable identification is not the same thing as active signal conditioning; avoid assuming that every cable contains a repeater or that an electronic marker proves Thunderbolt support. Certification and a clear specification are more useful than the connector shape.
Length limits depend on the cable's construction, generation and certification. There is no universal rule that all cables longer than 0.8 metres fail at 40 Gbps or that every cable above one metre uses the same electronics. Buy a cable certified for the required mode at the length you need. A cable with a higher supported rating does not accelerate a slower computer or peripheral.
A Practical Buying Checklist
Start with the accessory's requirements: its protocol, display configuration and power needs. Compare those with the specific computer port, then select an appropriate rated cable. For a dock, read its supported-host table and distinguish the upstream host socket from downstream accessory sockets. Keep the supplied cable with a dock that depends on it, and label replacement cables by their documented capability so similar-looking leads are not mixed up.
Certification indicates conformance to the applicable requirements; it does not guarantee maximum application throughput or override the computer's limitations. This is how USB-C and Thunderbolt can deliver their convenience without relying on misleading one-number comparisons.
Troubleshoot One Function at a Time
Begin with the simplest path: connect the accessory directly to the appropriate host port using a known suitable cable. Check its power requirements, then add the dock and other devices individually. If storage works but a display does not, inspect video support and the chosen output rather than treating the whole cable as defective. If charging works but data does not, confirm that the cable and socket support the required data mode.
Use operating-system device information to check enumeration, authorization and negotiated connection details. The Linux kernel's USB4 and Thunderbolt documentation describes its dedicated device interface and PCIe authorization; an ordinary USB device tree is not a complete measurement of a Thunderbolt or USB4 tunnel. A power meter can help investigate charging only if it supports the relevant voltage and protocol and does not interfere with the connection. Neither a voltage reading nor one file copy proves every cable capability.
